Configuração de endereços IPv4

Objetivos do laboratório


Praticar a configuração e o troubleshooting de endereços IPv4 em roteadores Cisco IOS.

Nível de dificuldade


Este laboratório possui nível de dificuldade 2/10.

Tempo para conclusão


Até 10 minutos.

Topologia do laboratório

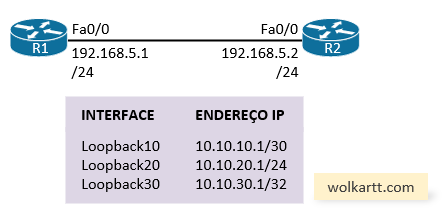

Use a seguinte topologia para completar este laboratório:


  • [tab]
    • Arquivo .pkt
      • Faça download do arquivo .pkt para executar este laboratório no Cisco Packet Tracer. Este laboratório foi construído na versão 7.2.1.0218 do simulador. Versões anteriores a essa não conseguirão abrir o arquivo. Clique aqui para baixar a versão 7.2.1.0218.
    • Download

Descrição das tarefas


  1.  Configure os hostnames dos roteadores R1 e R2 conforme ilustrado na topologia.
  2.  Configure os endereços IP nas interfaces FastEthernet0/0 de R1 e R2 conforme ilustrado na topologia.
  3.  Configure as interfaces Loopback em R2 conforme ilustrado na topologia.
  4.  Salve a configuração de R1 e R2 na NVRAM.
  5.  Use comandos show para verificar:
    •  Um resumo de todos os endereços IP configurados, em R1 e R2.
    •  O status das interfaces (up, down ou administratively down) de R1 e R2.
    •  A máscara de sub-rede aplicada às interfaces de R1 e R2.

Configuração e verificação


TAREFA 1

Router>enable
Router#configure terminal
Enter configuration commands, one per line.  End with CNTL/Z.
Router(config)#hostname R1
R1(config)#
Router>enable
Router#configure terminal
Enter configuration commands, one per line.  End with CNTL/Z.
Router(config)#hostname R2
R2(config)#

TAREFA 2

R1(config)#interface FastEthernet0/0
R1(config-if)#ip address 192.168.5.1 255.255.255.0
R1(config-if)#no shutdown
%LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up
R1(config-if)#exit
R1(config)#
R2(config)#interface FastEthernet0/0
R2(config-if)#ip address 192.168.5.2 255.255.255.0
R2(config-if)#no shutdown
%LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up
%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up
R2(config-if)#exit
R2(config)#

TAREFA 3

R2(config)#interface Loopback10
%LINK-5-CHANGED: Interface Loopback10, changed state to up
%LINEPROTO-5-UPDOWN: Line protocol on Interface Loopback10, changed state to up
R2(config-if)#ip address 10.10.10.1 255.255.255.252
R2(config-if)#
R2(config-if)#interface Loopback20
%LINK-5-CHANGED: Interface Loopback20, changed state to up
%LINEPROTO-5-UPDOWN: Line protocol on Interface Loopback20, changed state to up
R2(config-if)#ip address 10.10.20.1 255.255.255.0
R2(config-if)#
R2(config-if)#interface Loopback30
%LINK-5-CHANGED: Interface Loopback30, changed state to up
%LINEPROTO-5-UPDOWN: Line protocol on Interface Loopback30, changed state to up
R2(config-if)#ip address 10.10.30.1 255.255.255.255
R2(config-if)#exit
R2(config)#

TAREFA 4

R1(config)#exit
%SYS-5-CONFIG_I: Configured from console by console
R1#copy running-config startup-config
Destination filename [startup-config]?   ! Pressione Enter
Building configuration...
[OK]
R1#
R2(config)#exit
%SYS-5-CONFIG_I: Configured from console by console
R2#copy running-config startup-config
Destination filename [startup-config]?   ! Pressione Enter
Building configuration...
[OK]
R2#

TAREFA 5

R1#show ip interface brief
Interface              IP-Address      OK? Method Status                Protocol

FastEthernet0/0        192.168.5.1     YES manual up                    up

FastEthernet0/1        unassigned      YES unset  administratively down down

Vlan1                  unassigned      YES unset  administratively down down
R1#
R1#show interfaces FastEthernet0/0
FastEthernet0/0 is up, line protocol is up (connected)
  Hardware is Lance, address is 0007.ec1c.2501 (bia 0007.ec1c.2501)
  Internet address is 192.168.5.1/24
  MTU 1500 bytes, BW 100000 Kbit, DLY 100 usec,
     reliability 255/255, txload 1/255, rxload 1/255
  Encapsulation ARPA, loopback not set
  ARP type: ARPA, ARP Timeout 04:00:00,
  Last input 00:00:08, output 00:00:05, output hang never
  Last clearing of "show interface" counters never
  Input queue: 0/75/0 (size/max/drops); Total output drops: 0
  Queueing strategy: fifo
  Output queue :0/40 (size/max)
  5 minute input rate 0 bits/sec, 0 packets/sec
  5 minute output rate 0 bits/sec, 0 packets/sec
     0 packets input, 0 bytes, 0 no buffer
     Received 0 broadcasts, 0 runts, 0 giants, 0 throttles
     0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort
     0 input packets with dribble condition detected
     0 packets output, 0 bytes, 0 underruns
     0 output errors, 0 collisions, 1 interface resets
     0 babbles, 0 late collision, 0 deferred
     0 lost carrier, 0 no carrier
     0 output buffer failures, 0 output buffers swapped out
R1#
R2#show ip interface brief
Interface              IP-Address      OK? Method Status                Protocol

FastEthernet0/0        192.168.5.2     YES manual up                    up

FastEthernet0/1        unassigned      YES unset  up                    down

Loopback10             10.10.10.1      YES manual up                    up

Loopback20             10.10.20.1      YES manual up                    up

Loopback30             10.10.30.1      YES manual up                    up

Vlan1                  unassigned      YES unset  administratively down down
R2#
R2#show interfaces FastEthernet0/0
FastEthernet0/0 is up, line protocol is up (connected)
  Hardware is Lance, address is 0030.a311.e601 (bia 0030.a311.e601)
  Internet address is 192.168.5.2/24
  MTU 1500 bytes, BW 100000 Kbit, DLY 100 usec,
     reliability 255/255, txload 1/255, rxload 1/255
  Encapsulation ARPA, loopback not set
  ARP type: ARPA, ARP Timeout 04:00:00,
  Last input 00:00:08, output 00:00:05, output hang never
  Last clearing of "show interface" counters never
  Input queue: 0/75/0 (size/max/drops); Total output drops: 0
  Queueing strategy: fifo
  Output queue :0/40 (size/max)
  5 minute input rate 0 bits/sec, 0 packets/sec
  5 minute output rate 0 bits/sec, 0 packets/sec
     0 packets input, 0 bytes, 0 no buffer
     Received 0 broadcasts, 0 runts, 0 giants, 0 throttles
     0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort
     0 input packets with dribble condition detected
     0 packets output, 0 bytes, 0 underruns
     0 output errors, 0 collisions, 1 interface resets
     0 babbles, 0 late collision, 0 deferred
     0 lost carrier, 0 no carrier
     0 output buffer failures, 0 output buffers swapped out
R2#
R2#show interfaces Loopback10
Loopback10 is up, line protocol is up (connected)
  Hardware is Loopback
  Internet address is 10.10.10.1/30
  MTU 1514 bytes, BW 8000000 Kbit, DLY 5000 usec,
     reliability 255/255, txload 1/255, rxload 1/255
  Encapsulation LOOPBACK, loopback not set
  Last input never, output never, output hang never
  Last clearing of "show interface" counters never
  Queueing strategy: fifo
  Output queue 0/0, 0 drops; input queue 0/75, 0 drops
  5 minute input rate 0 bits/sec, 0 packets/sec
  5 minute output rate 0 bits/sec, 0 packets/sec
     0 packets input, 0 bytes, 0 no buffer
     Received 0 broadcasts, 0 runts, 0 giants, 0 throttles
     0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort
     0 input packets with dribble condition detected
     0 packets output, 0 bytes, 0 underruns
     0 output errors, 0 collisions, 0 interface resets
     0 babbles, 0 late collision, 0 deferred
     0 lost carrier, 0 no carrier
     0 output buffer failures, 0 output buffers swapped out
R2#
R2#show interfaces Loopback20
Loopback20 is up, line protocol is up (connected)
  Hardware is Loopback
  Internet address is 10.10.20.1/24
  MTU 1514 bytes, BW 8000000 Kbit, DLY 5000 usec,
     reliability 255/255, txload 1/255, rxload 1/255
  Encapsulation LOOPBACK, loopback not set
  Last input never, output never, output hang never
  Last clearing of "show interface" counters never
  Queueing strategy: fifo
  Output queue 0/0, 0 drops; input queue 0/75, 0 drops
  5 minute input rate 0 bits/sec, 0 packets/sec
  5 minute output rate 0 bits/sec, 0 packets/sec
     0 packets input, 0 bytes, 0 no buffer
     Received 0 broadcasts, 0 runts, 0 giants, 0 throttles
     0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort
     0 input packets with dribble condition detected
     0 packets output, 0 bytes, 0 underruns
     0 output errors, 0 collisions, 0 interface resets
     0 babbles, 0 late collision, 0 deferred
     0 lost carrier, 0 no carrier
     0 output buffer failures, 0 output buffers swapped out
R2#
R2#show interfaces Loopback30
Loopback30 is up, line protocol is up (connected)
  Hardware is Loopback
  Internet address is 10.10.30.1/32
  MTU 1514 bytes, BW 8000000 Kbit, DLY 5000 usec,
     reliability 255/255, txload 1/255, rxload 1/255
  Encapsulation LOOPBACK, loopback not set
  Last input never, output never, output hang never
  Last clearing of "show interface" counters never
  Queueing strategy: fifo
  Output queue 0/0, 0 drops; input queue 0/75, 0 drops
  5 minute input rate 0 bits/sec, 0 packets/sec
  5 minute output rate 0 bits/sec, 0 packets/sec
     0 packets input, 0 bytes, 0 no buffer
     Received 0 broadcasts, 0 runts, 0 giants, 0 throttles
     0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort
     0 input packets with dribble condition detected
     0 packets output, 0 bytes, 0 underruns
     0 output errors, 0 collisions, 0 interface resets
     0 babbles, 0 late collision, 0 deferred
     0 lost carrier, 0 no carrier
     0 output buffer failures, 0 output buffers swapped out
R2#

Conclusão do laboratório


Laboratório finalizado.
